FLY – AUTOMATIC SWING DOORS

Home »  Automatic Sliding and Swing Door – CAME »  FLY – AUTOMATIC SWING DOORS

FLY – AUTOMATIC SWING DOORS

FLY_2  FLY DOWNLOAD BUTTON

  FLY_4  FLY PRODUCT TYPE FLY_COMPABILITY



Technology that opens doors

Simple, versatile solution to automate any swing door with leaves up to 250 kg. Fly is ideal for public and commercial environments, but also for facilities for persons with mobility difficulties.

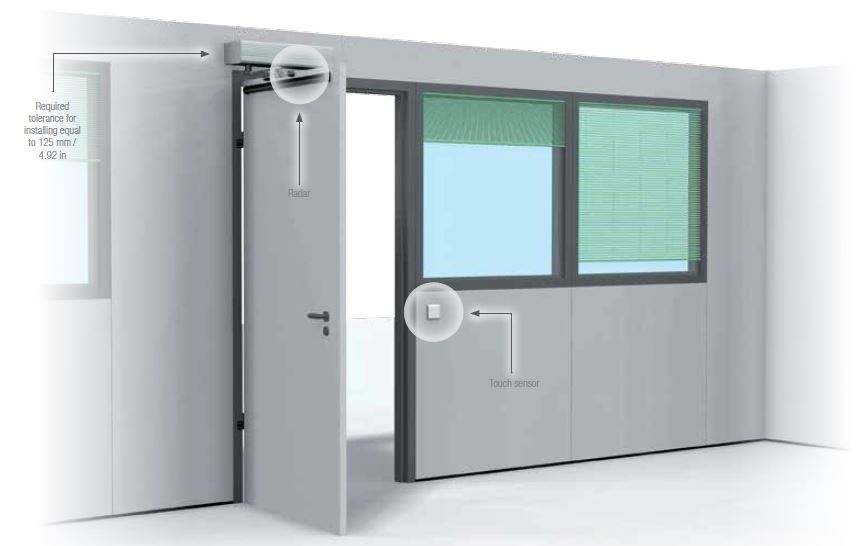

Easy to install

Special fixtures are not required to install Fly. Simply secure the operator to the main door beam, then connect the chosen movement lever to the leaf itself and complete installation with the required safety devices.



Benefits

  • 6060 aluminium alloy beams and covers, also anodised and painted on request
  • self-regulation of leaf run and thrust parameters
  • detection of any obstacles on the leaf movement line
  • specific movement levers for all uses, both PULL and PUSH, according to the installation method



The benefits of 24 V electronics

  • speed under control. According to requirements, the electronics is able to adjust the speed of manoeuvre
  • intensive use. The low voltage gearmotor ensures ideal operation of the barrier in conditions of intensive use
  • obstacle detection. A special electronic circuit constantly analyses regular leaf operation, either stopping or reversing the movement, when coming into contact with any obstacles

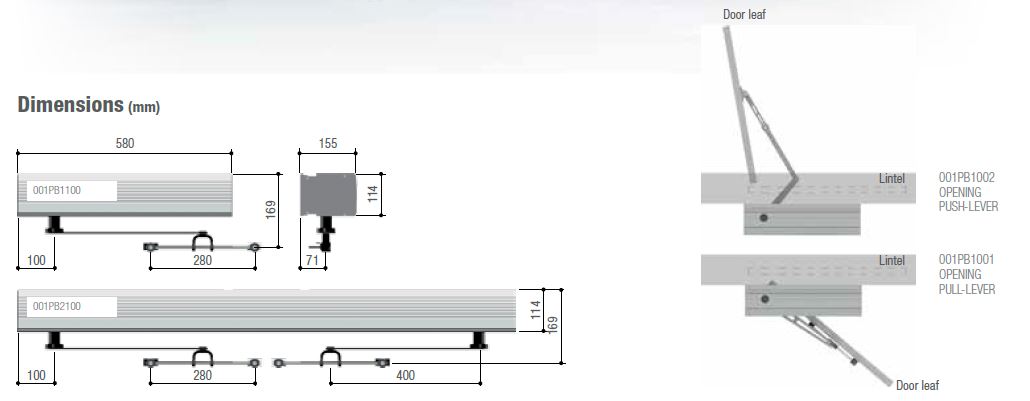

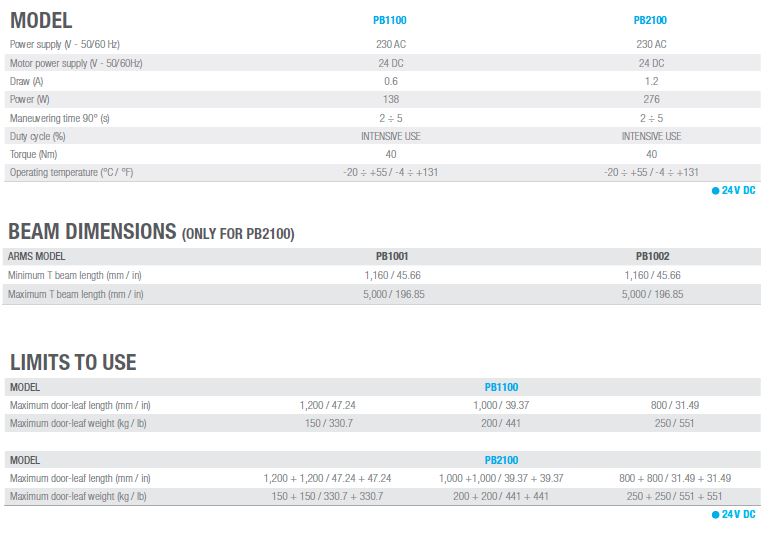

FLY_DIMENSION FLY_SPEC
