BX 246

Home »  Sliding Gate – CAME »  BX 246

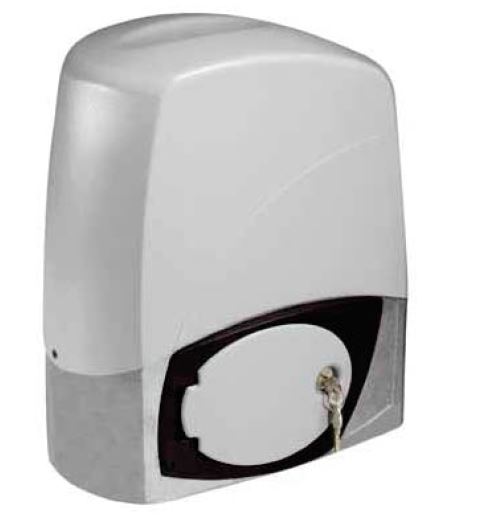

BX-246

                                               BX_246           DOWNLOAD BUTTON

BX_246_CONTROL PANEL              BX_246_PRODUCT TYPE                BX_246_PRODUCT_COMPABILITY

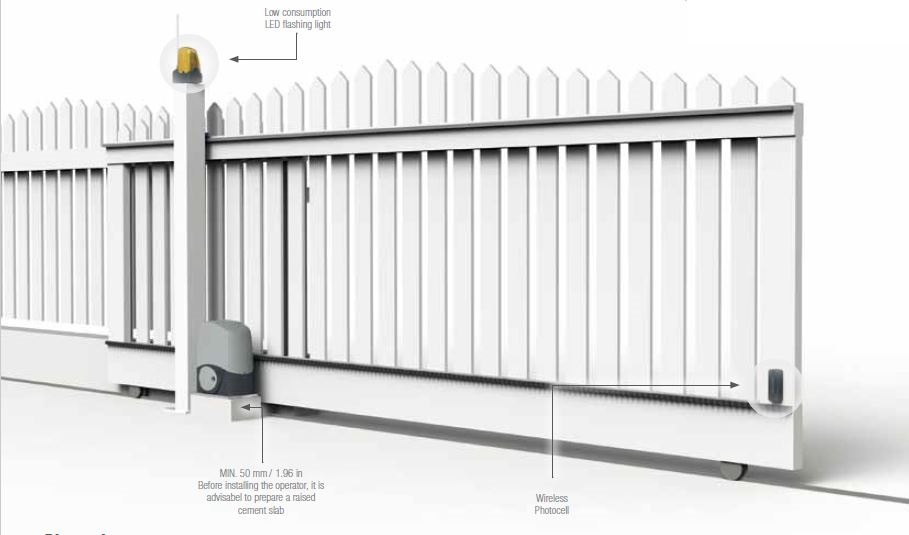

Ideal solution for residential gates.

Equipped with a new generation, built-in control panel, the BX-246 meets all European standard criteria. Its modern design and 24 V motor make it a complete system for sliding residential gates. This product gives reliability and durability.

  • Tested in compliance to parameter established by the current norms.
  • It works in emergency mode during blackouts.
  • Thanks to the built-in, protected endstops, installing in areas with critical weather conditions is no longer a problem.
  • Encoder-based movement control.
  • Self-diagnosis of safety devices.
  • The control board is placed horizontally, so that cabling operations are easier.
  • Available in two versions: with rack or chain transmission.



Certified security

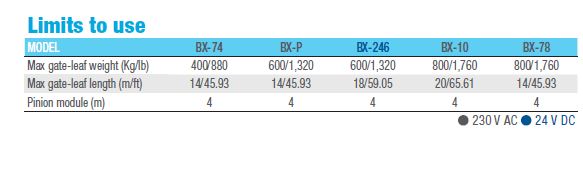

Bx-243 is the solution for sliding gates weighing up to 600kg and up to 18m in length. Intensive service thanks to the 24 V DC motor. Ideal for applications in residential contexts.



Advantages

  • integrated control board
  • LED indicator integrated into the control board for easy diagnosis of the system function
  • simple installation thanks to the connection with only one 3-wire cable and to the board placed in a horizontal position
  • integrated entstops protected within the gearmotor
  • practical integrated release lever protected by key lock hatch



The advantages of 24 V electronics

  • black-out. The electronics automatically detects any power failure and activates emergency operation by using backup batteries
  • intensive use. The low voltage gearmotor ensures ideal operation in conditions of intensive use
  • obstacle detection. A special electronic circuit constantly analyses regular operation, either stopping or reversing the movement when coming into contact with any obstacles

BX_246_3 BX_246.JPG_2 BX_246.JPG_1
